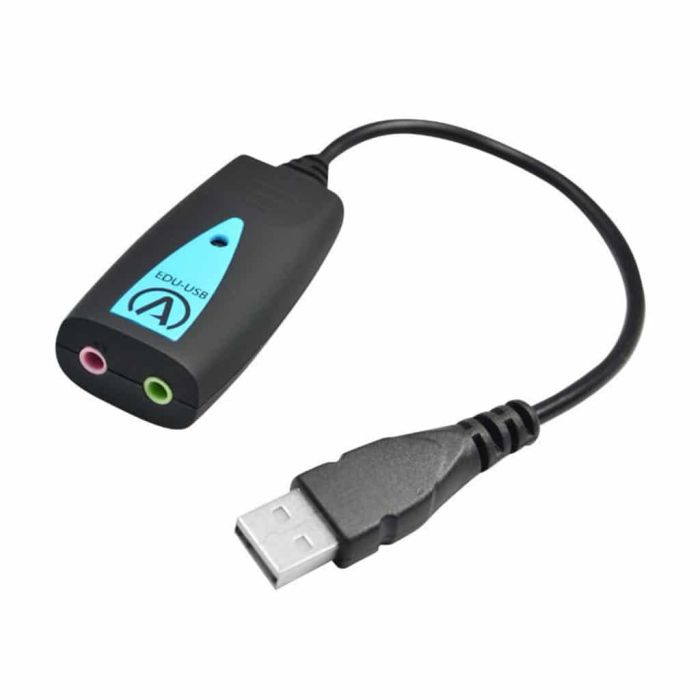

Andrea EDU-USB External USB-A Soundcard Adapter

• Microphone Jack 3.5 mm - Pink
• Speaker Jack 3.5 mm - Green
• Power - USB
• Microphone Input - 2 Channel Stereo
• Audio Output - 2 Channel Stereo
• Sampling Rate - 48K/44.1KHz/16K/8K
• Supply Voltage - 4.5-5.5 VDC
• Total Power Consumption - 120 mA
• A/D Conversion Resolution - 16 bit
• THD + N - -84 dB
• Supply Bass Resistor - 2.2K ohm @ 3.3 VDC
• Frequency Response - 20-20,000 Hz
• Input Range - 0-1.25 Vms
• Dynamic Range - 95 dB
• Record Gain Range - -6 to 33 dB
• D/A Conversion Resolution - 16 bit
• THD + N - -91 dB
• Frequency Response - 20-20,000 Hz
• Output Load - 32 ohm
• Output Voltage - 1.27 Vms

Andrea Communications EDU-USB eliminates the noise problems that are inherent in most standard, off-the-shelf computers.

Often placed in close proximity to components such as the power supply and processors, internal sound cards or integrated audio systems can generate audible noise. Combine this with the fact that computers are frequently used in high noise level environments, and the performance of peripherals like headsets, microphones, and speakers may be affected.

The EDU-USB uses high quality digital circuitry to bypass the computer's internal sound system, converting the analog signal to digital. The result is increased clarity and performance of both the stereo microphone input and the stereo speaker output for all digital audio applications including VoIP and speech recognition programs.

• External USB headset adapter with CD quality digital sample rates.
• Bypasses a computer's sound system, creating superior low-noise audio.
• Small form factor - compact and portable.
• Colour-coded jacks for easy connection.
• Power On/Data Transmit LED indicator.
• Compatible with all current Andrea Communications headsets and microphones as well as any legacy peripherals.

Compatibility:

• Windows 8, Windows 8.1, and Windows 10.
• Apple: Mac OS X 10.5 and up.
• MacBook with USB-C ports require C-400 USB Type C Adapter for USB connectivity.
